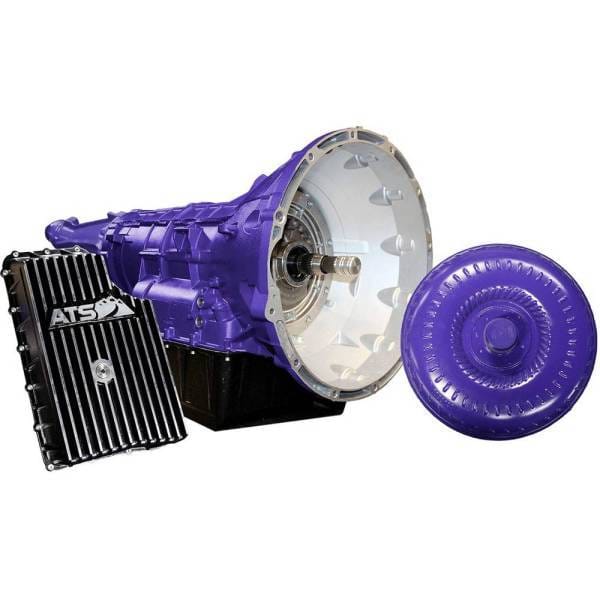

ATS Diesel Stage 1 6R140 Package 2011-2014 Ford Superduty 2Wd - 309-912-3416

The ATS Billet Flex Plate is not only stronger, but more durable than any other flex plate on the market today. ATS Billet Flex Plates are machined in-house by our Arvada, Colorado proprietary manufacturing process utilizing our state-of-the-art machining and hardening techniques, which ensures unmatched strength and concentricity. ATS Transmission Upgrade Features: We start with a new Ford valve body then calibrate on our Hydro-Test Valve Body Stand A combination of new BorgWarner and Raybestos frictions performance clutch packs Pressure plates are custom ground to achieve perfect clutch stack height All new custom machined steels Improved heavy duty 4-5 and 6th overdrive clutch pack Increased overdrive clutch count Custom machined overdrive apply piston New gasket, seal, & o-ring sealing kit New transmission filter kit New pump bearing HD pump modifications ATS Deep Pan extra capacity transmission pan Hydraulic modifications to increase cooling and lubrication ATS Torque Converter
The ATS Five-Star utilizes an optimized stall speed that features improved torque multiplication. With factory torque multiplication at approximately 1.25:1, the ATS Five-Star boasts 2.4:1. This occurs when peak engine torque is achieved. Increased torque multiplication results in improved vehicle response, towing and driving ability. Every Five Star comes standard with a 5 year / 500,000-mile warranty. When the most efficient torque converter is required, look no further than ATS Five-Star Torque Converter.
ATS Five -Star Torque Converter Features: Patented Viskus clutch drive system for increased efficiency Billet cover with patented square flank drive Square tab construction (not round) Viskus disc CNC laser cut clutch plates Billet piston with patented flank drive tab design Proprietary ATS exclusive clutch formulation with unique bonding technology (ensures 100% chemical bond) Redesigned spring dampener supports increased torque loads 4340 hardened turbine splines provide longevity and reliability Fully welded turbine and impeller vanes CNC stator with high flow windows increases oil flow, providing increased efficiency Full roller bearing construction between high load areas 4340 CNC cut pump drive hub locked into impeller housing Plasma welded for unsurpassed strength
